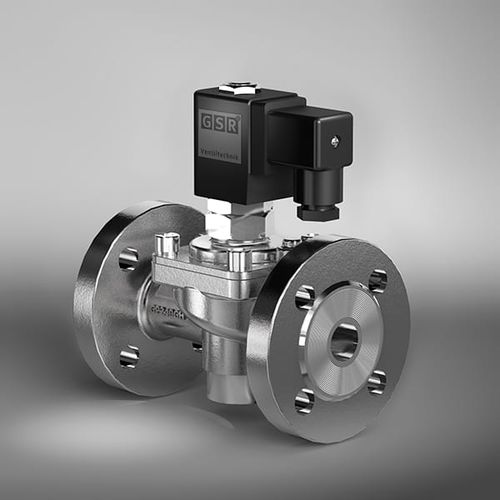

Diaphragm solenoid valve 27pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- flange, stainless steel, IP65
- Other characteristics
- diaphragm
- DN
Min.: 15 mm
(0.591 in)Max.: 150 mm
(5.906 in)- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.1 psi)
Description
Description
2/2-Way solenoid valve, diaphragm design
Impulse
without differential pressure
Body
Stainless Steel, Cast iron, Cast steel
Force-pilot operated diaphragm design valve. Nodifferential pressure is necessary for operation.In standard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Type of control: Force-pilot operated, no pressure difference necessary
Design: Diaphragm design
Connection: Flanged
acc. toEN 1092-1 Form B1/B2
Installation: With actuator upright
Pressure: 0 -16 bar(see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
Viscosity: 22 mm²/s
Temperature range: Medium: -10 °C up to+80 °C
Ambient: -10 °C up to+50 °C
In consideration of the restrictions described on page 4
Body material: Cast iron EN-GJL-250 (DN20-150)
Cast steel GP240 GH (DN15-100)
Speroidal EN-GJS-400-18-LT (DN150)
Stainless steel 1.4581 (DN15-50)
Metallic inner parts: Brass and Staineless steel
Sealing: NBR, FKM, EPDM
Supply voltage: AC~ 24V, 110V, 230V
DC= 12V, 24V
Other supply voltages on request
