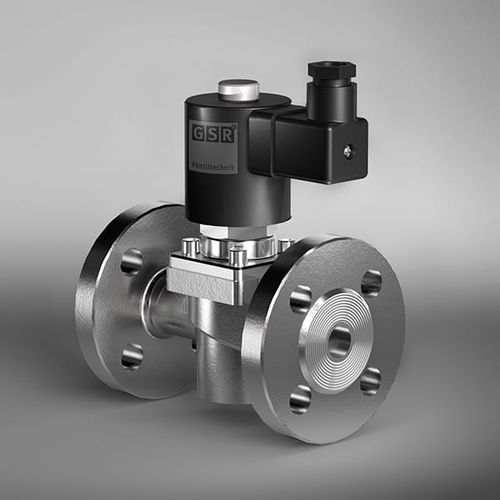

Piston solenoid valve 37pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- flange, stainless steel, IP65
- Other characteristics
- piston
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)
Description
Description
2/2-Way solenoid valve, piston design
Impulse
without differential pressure
Body
Stainless Steel, Cast iron, Cast steel
Force-pilot operated piston design valve. No differential pressure is necessary for operation. Instandard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Type of control: Force-pilot operated, no pressure difference necessary
Design: Piston design
Connection: Flanges acc. to EN 1092-1 Form B1/B2
Other flange connections like ASME on request
Installation: With actuator upright
Pressure: 0-40 bar (see table page 2)
Medium: Clean, neutral, liquid or gaseous media
max. viscosity: 22 mm²/s
Temperature range: Medium: -40 °C bis +80 °C
Ambient: -40 °C bis +50 °C
In consideration of the restrictions described on page 4
Body material: Cast iron EN-GJL-250
Cast steel GP240 GH
Stainless steel 1.4581
Metallic inner parts: Brass and stainless steel
