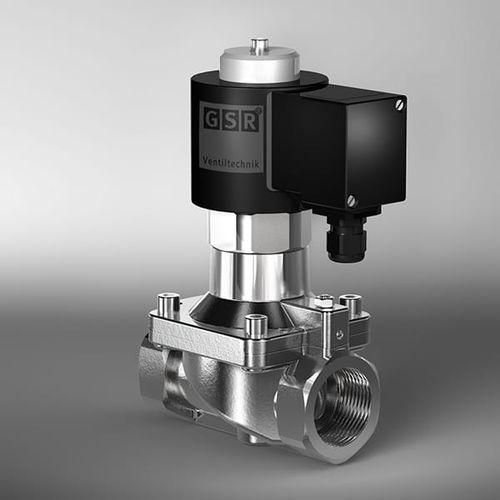

Diaphragm solenoid valve 43pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- threaded, brass, stainless steel, IP65
- Other characteristics
- diaphragm
- DN
Min.: 0.25 in
Max.: 2 in
- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.1 psi)
Description
Description
2/2-Way solenoid valve, diaphragm design
Impulse
without differential pressure
Body
Brass, Stainless Steel
Force-pilot operated diaphragm design. Nodifferential pressure is necessary for operation.
In standard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Typeof control: Force-pilot operated
Design: Diaphragm design
Connection: Threaded G1/4 -G2
DIN ISO 228/1 (BSP)
Further connections like NPT on request
Installation: Actuator upright
Pressure: 0 -16 bar (see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
max. viscosity: 22 mm²/s
Temperature range: Medium: -10 °C up to+80 °C
Ambient: -10 °C up to+50 °C
In consideration of the restrictions described on page 4
Body material: Brass 2.0402
Stainless steel 1.4581
Metallic inner parts: Brass and Stainless steel
Sealing: NBR, FKM, EPDM
Supply voltage: AC~ 24V, 110V, 230V
DC= 12V, 24V
Other supply voltages on request
