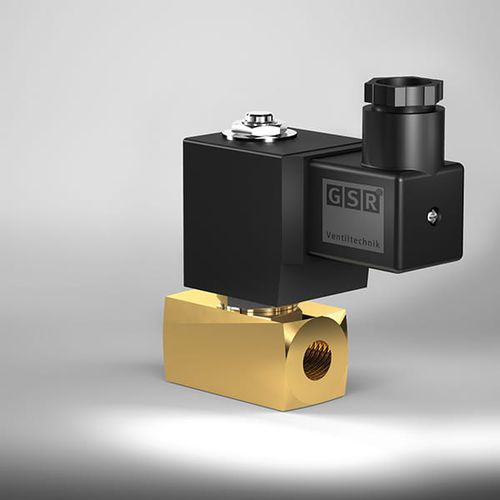

High-pressure solenoid valve 52Sdirect-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- threaded, brass, stainless steel, IP65
- Other characteristics
- high-pressure, piston
- DN
0.25 in
- Voltage
Min.: 12 V
Max.: 230 V
- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)- Pressure
Min.: 0 bar
(0 psi)Max.: 150 bar
(2,175.6 psi)
Description
Description
2/2-way solenoid valve
Impulse
without differential pressure
Body
Brass, Stainless Steel
Direct operated Piston design. No differential pressure is necessary for operation. When energized, the valve seat is opened directly. In standard (NC) the valve closes with spring power.
TECHNICAL SPECIFICATIONS
Type of control: Direct operated
Design: Piston design
Connection: Threaded G1/4 DIN ISO 228 (BSP)
Other connections like NPT on request
Installation: Preferable with actuator upright
Pressure range: 0 -150 bar (see table on page 2)
Medium: Clean, neutral, liquid or gaseous
Viscosity: 22 mm²/s
Temperature range: Medium -40 °C bis +80 °C
Ambient -40 °C bis +50 °C
The max.ambient temperature depends on the combi-ned operating conditions.
Body material: Brass 2.0401
Stainless steel 1.4305
Stainless steel 1.4571
Metallic inner parts: Brass and stainless steel
