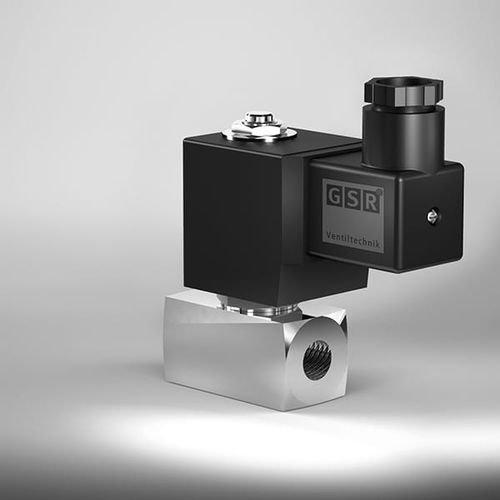

Piston solenoid valve 52 direct-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- threaded, brass, stainless steel, IP65
- Other characteristics
- piston
- DN
Max.: 0.5 in
Min.: 0.125 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 90 bar
(1,305.3 psi)Min.: 0 bar
(0 psi)
Description
Description
2/2-Way solenoid valve, piston design
Impulse
without differential pressure
Body
Brass, Stainless Steel
Direct operated piston design valve. No differential pressure is necessary for operation. When energized, the valve seat is opened directly.In standard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Type of control: Direct operated, no differential pressure necessary
Design: Piston design
Connection: Threaded G1/8 -G1/2
DIN ISO 228/1 (BSP)
Further connections like NPT on request
Installation: Preferable with actuator upright
Pressure: 0 -90 bar (see table on page 2)
Medium: Clean, neutral, gaseous and liquid media
max. Viscosity: 22 mm²/s
Temperature range: Medium: -10 °C up to+80 °C
Ambient: -10 °C up to+50 °C
In consideration of the restrictions described on page 4
Body material: Brass 2.0401 / 2.0402
Stainless steel 1.4305
Stainless steel 1.4571
Metallic inner parts: Brass and Stainless steel
