Piston solenoid valve 74
pilot-operated2-wayNC

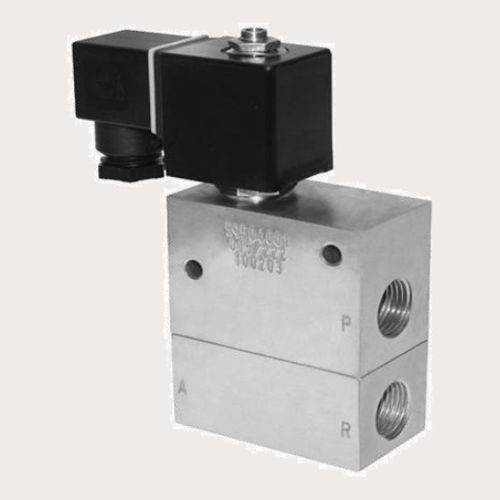

Piston solenoid valve - 74 - GSR Ventiltechnik GmbH & Co. KG - pilot-operated / 2-way / NC
Piston solenoid valve - 74 - GSR Ventiltechnik GmbH & Co. KG - pilot-operated / 2-way / NC
Piston solenoid valve - 74 - GSR Ventiltechnik GmbH & Co. KG - pilot-operated / 2-way / NC - image - 2
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for water, for gas
Body
threaded, brass, stainless steel, IP65
Other characteristics
piston
DN

Min.: 0.25 in

Max.: 2 in

Voltage

Min.: 12 V

Max.: 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Pressure

Min.: 2 bar
(29 psi)

Max.: 30 bar
(435.1 psi)

Description

Description 2/2-way valve Impulse with differential pressure Body Brass, Stainless Steel Pilot operated piston design valve. The mentioned minimum pressure difference between inlet and outlet is necessary for proper operation. In standard (NC) the valve closes with spring power. TECHNICAL SPECIFICATIONS Type of control: Pilot operated Design: Piston design Connection: Threaded G1/4 -G2 DIN ISO 228/1 (BSP) Further connections like NPT on request Installation: Preferable with actuator upright Pressure: 2 -30 bar (see table on page 2) Medium: Clean, neutral, gaseous and liquid media max. viscosity: 22 mm²/s Temperature range: Medium: -10 °C up to+80 °C Ambient: -10 °C up to+50 °C In consideration of the restrictions described on page 4 Body material: Brass 2.0402 Stainless steel 1.4571 Metallic inner parts: Brass and Stainless steel Sealing: NBR, FKM, EPDM, PTFE Supply voltage: AC~ 24V, 110V, 230VDC= 12V, 24V Other supply voltages on request Voltage tolerance-10% / +10% Power consumption.032 = 11 Watt .012 = 18 Watt Protection class IP65 acc. toDIN 60529 Duty factor 100% ED-VDE 0580 Connection type: Plug
