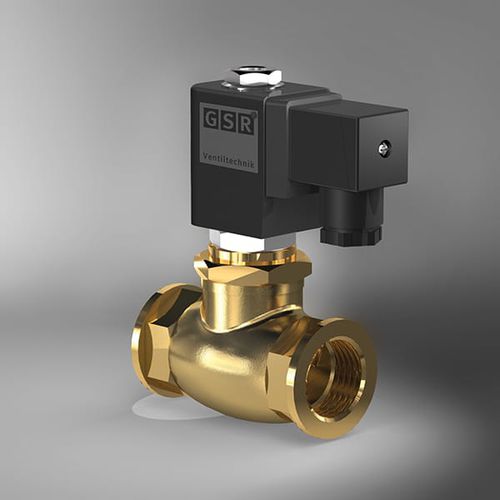

Plug solenoid valve 48direct-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas
- Body
- threaded, brass, stainless steel, IP65
- Other characteristics
- plug
- DN
Max.: 3 in
Min.: 0.375 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)- Pressure
Max.: 5 bar
(72.5 psi)Min.: 0 bar
(0 psi)
Description
Description
2/2-Way solenoid valve
Impulse
without differential pressure
Body
Brass, Stainless Steel
Direct operated piston design. No differential pressure is necessary for operation. When energized, the valve seat is opened directly.In standard (NC) the valve closes with spring power.
Solenoid valve for gaseous and liquid media
TECHNICAL SPECIFICATIONS
Type of control: Direct operated, no pressure difference required
Design: Poppet design
Connection: Threaded Rp3/8 -Rp3
DIN 2999 (BSP)
Other connections like NPT on request
Installation: Actuator in upright position
Lying position of actuator on request
Pressure: 0-5 bar (see table page 2)
Medium: Clean, neutral, gaseous and liquid medium
Viscosity: 22 mm²/s
Temperature range: Medium: -40 °C bis +80 °C
Ambient:-40 °C bis +50 °C
In consideration of the restrictions described on page 4
Body material: Brass 2.0402
Stainless steel 1.4581
