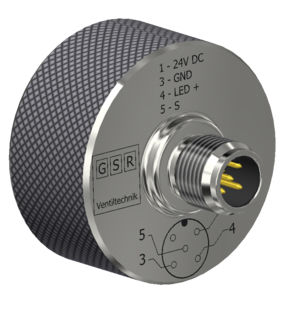

Linear position sensor

contactlessmagneticinductive

A brand new product from GSR Ventiltechnik is an inductive sensor for end position detection that offers maximum reliability in industrial applications. The sensor works contactless and therefore wear-free. For many applications, it is essential that the user is certain whether the valve has switched or not. Such end-position queries are usually solved with reed-contact switches. However, this solution is often very large, clunky and also expensive. A lot of effort is put into sealing as much surface area as possible. This results in a loss of magnetic field, which impairs the valve function. This means that retrofitting valves that have already been delivered is only possible with considerable effort. The GSR end position sensor, on the other hand, can be easily retrofitted to existing valves. It is currently available for the GSR DC solenoid systems .032 and .012. Other solenoid systems are in preparation, as e. g. explosion protection. In complete assembly with valve, the sensor is also available as option 6H. The mode of operation is as follows: The sensor detects the magnetic field. When the armature moves, the magnetic field changes and the sensor detects when the valve has switched. The LED display integrated in the plug signals successful switching. In this way, the user can be sure that the valve is functioning reliably. End position sensors are used in control systems, the chemical industry, shipping and in processing machines. The GSR end-position sensor scores points not only for its simple installation but also for its compact and robust design.
