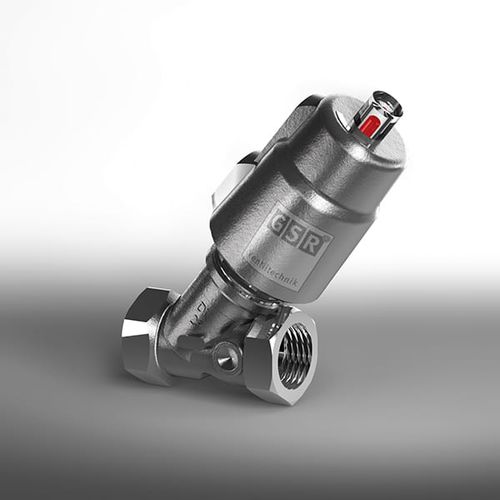

Angle seat valve 63
plugpneumatically-operatedfor gas

angle seat valve
angle seat valve
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
pneumatically-operated
Media
for gas
Body
threaded, angle seat, stainless steel, brass
Applications
for liquids
Number of channels
2/2-way
Other characteristics
normally closed
DN

Max.: 3 in

Min.: 0.25 in

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 0 bar
(0 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -40 °C
(-40 °F)

Flow rate

Max.: 125 m³/h
(4,414.33 ft³/h)

Min.: 5 m³/h
(176.57 ft³/h)

Description

Description 2/2-Way pressure controlled valve in poppet design Impulse without differential pressure Body Brass, Stainless Steel, Red brass
