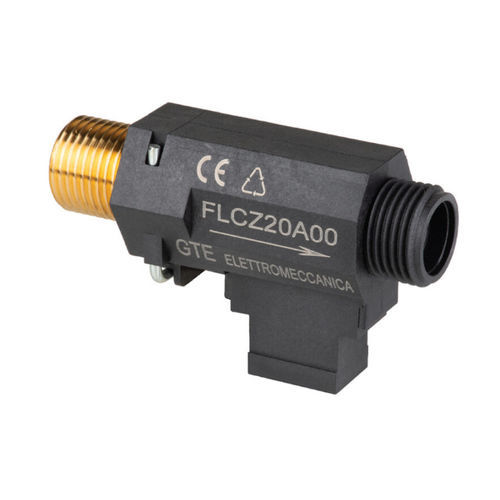

Reed flow switch FL for steamverticalbrass
Add to favorites
Compare this product
Characteristics
- Technology
- reed
- Fluid
- for steam
- Other characteristics
- brass, vertical
- Applications
- for the food industry
Description
Description
The FL series has designed to intercept the flow presence by magnetic system contact reed.Magnetic
components separated from the electric parts, the last one is possible to replace without removing the component from its installation.
Technical data
Switching power max - 10 W
Switching current - 0,5 A
Switching voltage - 100 Vac / Vdc
Insulation resistance - 100.000 MOhms
Breakdown voltage - 160 / 220 Vac / Vdc
Contact resistance - 100 Ohms
Capacitance - 0,7 Pf
Switch - Normally open (NO)
Working position - Vertical
Working pressure range - 0 – 15 bar
Switching range - ON 2,0 l/min; OFF 1,2 l/min
Connection pins tabs - 6,3 x 0,8 mm
Water temperature - +2°C to (90°C)
Ambiente temperature - -20°C (with antifreeze additive) to +60°C
Inlet - Brass G1/2
Grado di protezione / Protection Class - IP00
Peso / Weight - 86 grammi / grams
