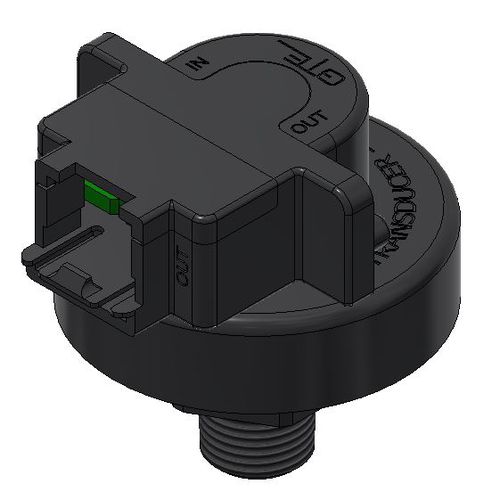

Electronic vacuum switch VE

vacuumfor liquidsfor gas

The VE series transducers find their optimal use in the following applications: Filtration Packaging Pneumatics Medical Vacuum handling systems Industrial application Consisting of a Hall sensor, the development of this transducer is based on the concept of the solicitation of a semiconductor by means of a magnet. It is made of reinforced technopolymer in such a way as to withstand mechanical stresses and high thermodynamic conditions. The use of ultrasonic welding technology makes the coupling of the components making up the product homogeneous and stable over time, avoiding metal joints or rivets. Construction features Plastic casing - Polyarylamide (alsoavalilable as IEC 60695-2-12 GWFI approved materials) Sensitive component - AISI Seal - EPDM; NBR; FPM; SILICONE Sensor - Programmable Connector - RAST 2,5 (AMP duoplug type) Protection degree - IP00 Weight - 22 gr. Approvals EN61000-4-2, EN61000-4-3, EN61000-4-4 All our products conform to the 2002/95/EC European directive (RoHS)
