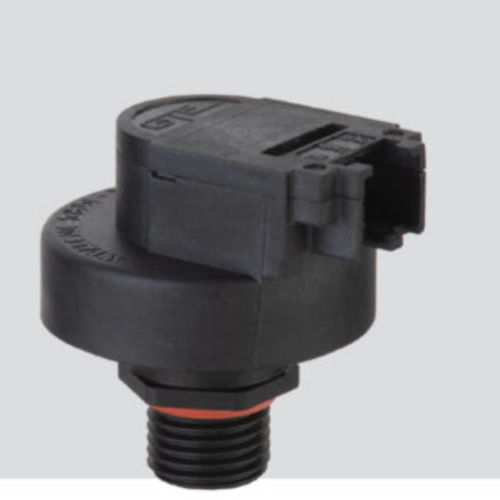

Relative pressure transducer TTmembranefor gasfor liquids
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Fluid
- for gas, for liquids
- Material
- plastic
- Protection level
- EMC
- Applications
- for water treatment, for boiler
- Other characteristics
- Hall effect, RoHS
- Pressure range
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 110 °C
(230 °F)
Description
Transducer T and TM Series is best suited to the following applications:
Heating (wall heaters)
Air conditioning systems
Boiler systems (steam)
Industrial applications
Water treatment
Costruction Features
Plastic Casing - Polyarylamide Solvay (also available as IEC 60695-2-12 GWFI approved materials)
Membrane - AISI
Seal - EPDM; VITON; SILICONE; NBR;
Sensor - Linear programming
Connector - RAST 2,5 (AMP duoplug type)
Protection Class - IP00
Weight - ∼ 23 grams
Approvals
EMC 2014/30EU
All our products conform to the 2002/95/EC European directive RoHS and REACH.
Storage
Avoid the transducer coming into contact with powders
Do not store in locations with humidity condensation
