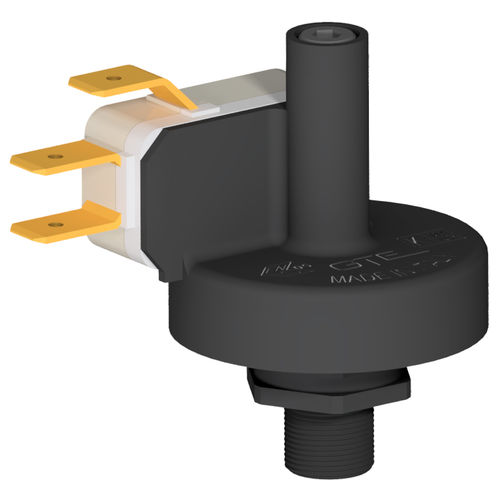

Differential pressure switch SP

for liquidsfor gasplastic

The SP series Pressure Switch is best suited to the following applications: Heating (wall heaters) Air conditioning systems Boiler systems irons, coffee, carpet cleaners, gardening etc..) Industrial applications Water treatment Consisting of a sensitive elements in AISI, it is compatible in the use with different types of gaseous or liquid fluids, with temperatures up to 150° C. Calibration is adjustable It is built with technopolymer reinforced. Ultrasound welding system, make the coupling homogeneous and stable for a long time avoiding metal joints or rivets. Costruction Features Plastic Casing - Polyarylamide Solvay (also available as IEC 60695-2-12 GWFI approved materials, food approval) Membrane - AISI Microswitch - 1 – Approved ENEC 2 – Availability: NO Normally open NC Normally closed DEV Changeover Terminals - Fast-on 6,3×0,8 RAST 2,5; RAST 5 (electric connections available on request). Contacts - AgNi10 (voltage signal contacts) Protection Class - IP00 Weight - ∼ 24 grams
