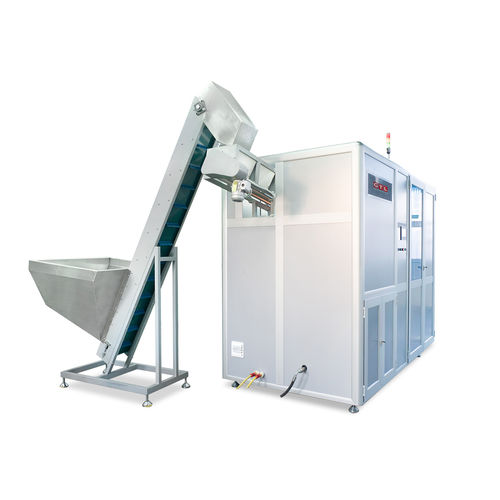

Extrusion blow molding machine GTL-Conti series

for PETfor plastic bottlesfor PET containers

The GTL-CONTI automatic machines are intended for production of PET containers by plastic preforms blowing. The automatic machines have linear construction and consist of preforms transport system, area of preliminary heating and blowing. The high quality implementation of the blow moulding unit allows to provide blowing of the containers with the pressure of compressed air from 15 bars which leads to considerable savings during the usage of the machine. The basic models of the GTL-Conti automatic machines are intended to blow bottles with neck diameter of 28 or 38 mm. with the volume 0,2-2,0 liters. • Standard bottle • Can with wide neck • Jerrycan of 4-6 liters • The containers of small dimension (till 0,05 liter) Basic configuration • till 8 levels of preliminary warming • Touch-Screen control • Bottle output on the air conveyer • PLC controller, possibility of remote control • Full statistics of the machine work • Full automatization with filling line (soft stop system) GTL-Conti 3000 • Capacity — till 3000 bottles per hour • Quantity of press forms 3 • Quantity of preliminary warming spots — 112 GTL-Conti 4500 • Capacity — till 4500 bottles per hour • Quantity of press forms 4 • Quantity of preliminary warming spots — 118 The GTL-Conti PET blow moulding automatic machine. Services • Manufacture of original design of the bottle • Manufacture of high quality press forms
