Tension/compression force transducer DR-F series
strain gaugewith mounting flangeswith built-in accelerometers

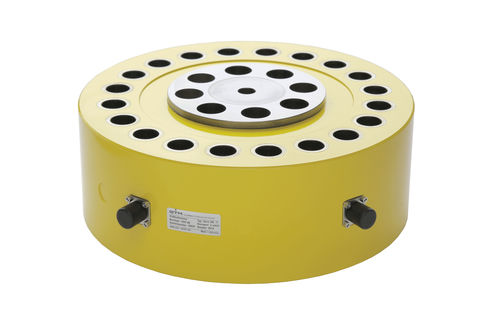

Tension/compression force transducer - DR-F series  - GTM Gassmann Testing Metrology GmbH - strain gauge / with mounting flanges / with built-in accelerometers
Tension/compression force transducer - DR-F series  - GTM Gassmann Testing Metrology GmbH - strain gauge / with mounting flanges / with built-in accelerometers
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Technology
strain gauge
Other characteristics
with mounting flanges, with built-in accelerometers
Rated force

Min.: 50 kN

Max.: 2,500 kN

Description

The force transducers of series DR-F with inner flange enable an application in dynamic high-load range. Compared to a single thread, the flange mounting allows an easier initial tensioning of the high force attachments, since the required pretension force is distributed over several screws. The two built-in accelerometers are adapted to the requirements of lower frequencies and higher coupling masses.
