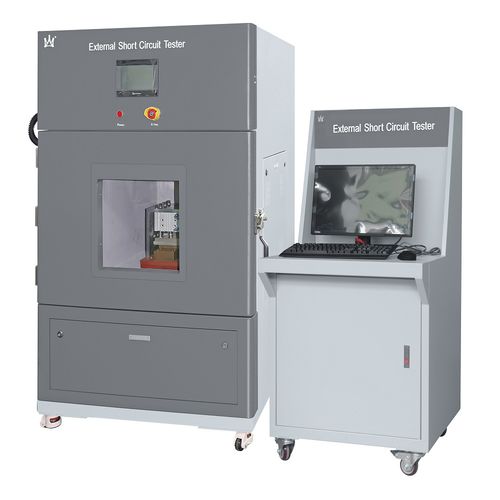

Short circuit test chamber BE-XL series

for batteryfor materials testing machineshigh-current

Large Current Battery Short Circuit Test Chamber Relevant standards requirement: 1. Test object: battery pack and system 2. Test conditions: • Test temperature should be at the 20±10℃or higher. (According to battery system manufacturer’s request). • All protective devices that affect the function of the test objects and related to the test results shall be in normal operation when test start. 1. The main contactors used for charging and discharging should be closed to indicate the feasible vehicle mode and the mode of allowing external charging. If is it not available to be completed in one single test, process two or more tests. 2. The positive and negative terminals of the test object being connected to each other to create a short circuit. The resistance of the connection (including wiring) which used to create short circuit should not exceeding 5mΩ. 3. Keep short circuit until any of the following conditions are met and the test is completed. • The protection function of the test object works and the short circuit current is terminated. • After the temperature of the test object’s shell is stable (the temperature gradient is less than 4℃within 2h), the short circuit will continue for at least 1h. 6. After testing, observe for 2h under the room temperature. Technical Parameters: Max. Operating Current: 10000A, 16000A Max. Transient Current: 12000A,16000A Temp. Range: Ambient Temperature Inner Resistance: ＜1mΩ, ＜5mΩ, ＜10mΩ, ＜20mΩ, ＜50mΩ,＜100mΩ (Optional) Control Mode: Close PLC touch screen control + computer remote control + remote control
