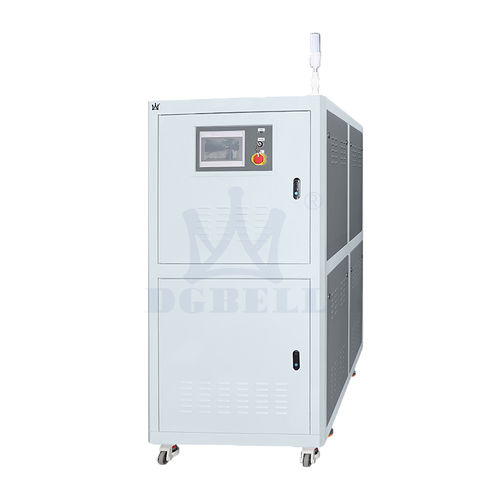

Liquid chiller TEST-HZ05

industriallaboratoryfor the automotive industry

Battery Direct cooling test chiller Application Battery pack thermostatic/cooling control/heat pump preheating vehicle temperature/pressure/Supercooling control Refrigerant mass flow display Dual system test Freon /CO2 cold-wall cooler is specially used for Freon direct cooling battery pack test equipment, through the control of Freon pressure, supercooling, superheat, mass flow distribution and other ways to control the working parameters of the whole machine, in order to imitate the vehicle cold-wall temperature control state of thermal testing. It can choose three modes: refrigeration condition, heat pump condition and PTC preheating condition Compared with traditional liquid cooling temperature control, Freon direct cooling system reduces the coolant cycle components, which has the advantages of higher reliability, lighter weight, less energy consumption and more stable working conditions. It is the main development direction of new energy vehicle thermal temperature control in the future and is widely used in new product development as well as quality control Simulate the vehicle direct cooling/heatingsystem conditions to provide test technical conditions. Freon direct cooling, no coolantcirculation, energy saving and high efficiency. With both direct cooling and direct heatingfunctions, it can meet the test needs of the battery under various working conditions. Undercooling/overheat adjustment can be achieved.The evaporation pressure can be adjusted.With refrigerant mass flow display.The equipment has the function of remotecommunication, supporting RS485, CAN, CANFD and other communication. With power battery double cold plate/doublesystem direct cooling test.
