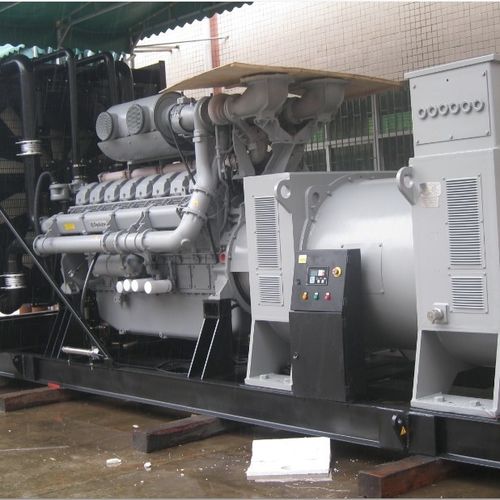

Product Name:2500kVA Perkins Diesel Generator Set(10kVA-2500kVA)
Model No.:BPX2500
Minimum Order:1
Product Abstract:
2500kVA Perkins Diesel Generator Set: Prime Power 1800kW/2250kVA; Standby Power 2000kW/2500kVA; Engine model: 4016-61TRG3A; Fuel cons.100%(L/H): 440 ; Cyl. arrangement: 16V; Intake type: Turbocharged; Type of governor: Electronic governor; Frequency: 50Hz/60Hz; Rated speed: 1500/1800rpm; Phase/Wires: 3 phase 4 wires; Displacement(L): 61.1 ; Dimension(mm): 6000x2800x3500; Weight(kg): 15000; Alternator: Stamford, Marathon, Leroy Somer, Faraday, Engga; Automatic controller: Deep Sea and Hassan.
Product Description
Perkins Generator Set 2500KVA:
50Hz, 1500rpm, 380/220v, 400/230v (adjustable)
Performance Feature
1)Engine and alternator shall be mounted on a same frame steel skid.
2)Built-in damper for anti-vibration.
3)Small size, low weight, easy to operating, installation and maintenance.
4)World most famous brand diesel engine.
5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
7)Full range protect function and alarm shutdown feature.
Alternator Feature
1)Brush-less, 4 poles, rotation magnet.
2)IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3)The insulation system is Class H
4)Simple installation and maintenance, with easy access to terminals, rotating diodes
5)Wide range of flange adaptors and single bearing disc coupling.
6)Standard 2/3 pitch windings avoid excessive neutral currents
7)AVR auto voltage regulator, auto exciter, auto adjustment
