Diesel generator set Perkins

three-phasestationaryair-cooled

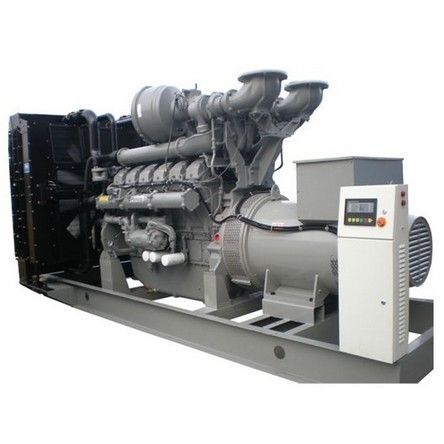

Product Name:1815kVA Perkins Diesel Generator Set(10kVA-2500kVA) Model No.:BPX1815 Minimum Order:1 Product Abstract: 1815kVA Perkins Diesel Generator Set: Prime Power 1320kW/1650kVA; Standby Power 1452kW/1815kVA; Engine model: 4012-46TAG3A; Fuel cons.100%(L/H): 329 ; Cyl. arrangement: 12V; Intake type: Turbocharged; Type of governor: Electronic governor; Frequency: 50Hz/60Hz; Rated speed: 1500/1800rpm; Phase/Wires: 3 phase 4 wires; Displacement(L): 45.8 ; Dimension(mm): 5100x2200x2800; Weight(kg): 10200; Alternator: Stamford, Marathon, Leroy Somer, Faraday, Engga; Automatic controller: Deep Sea and Hassan. Product Description Perkins Generator Set 1815KVA: 50Hz, 1500rpm, 380/220v, 400/230v (adjustable) Performance Feature 1)Engine and alternator shall be mounted on a same frame steel skid. 2)Built-in damper for anti-vibration. 3)Small size, low weight, easy to operating, installation and maintenance. 4)World most famous brand diesel engine. 5)World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC. 6)Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 7)Full range protect function and alarm shutdown feature. Alternator Feature 1)Brush-less, 4 poles, rotation magnet. 2)IP21-23(NEMA1) enclosure is standard for all industrial alternators. 3)The insulation system is Class H 4)Simple installation and maintenance, with easy access to terminals, rotating diodes 5)Wide range of flange adaptors and single bearing disc coupling. 6)Standard 2/3 pitch windings avoid excessive neutral currents 7)AVR auto voltage regulator, auto exciter, auto adjustment
