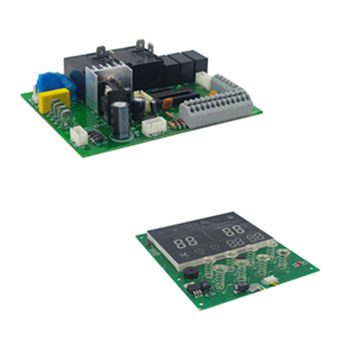

Chiller / heatpump controller RBYT0000-0571A005

This controller is designed for domestic heat pump heat pump , suitable for all in one heat pump. Single compressor control , with strongly system protection ,has pass EMC industrial standard certificate. The controller with advance functions and groundbreaking applications for the HVAC market. Features: •With touch button LED display , quick parameter setting, easy operation •Intelligent defrost control mode, more stable and energy saving, •Power off memory function •EEV control function •Working modes: Heating mode 、High temperature disinfection mode •Kitchen refrigeration function •24 hour cycle Timing ON/OFF function •Five way control output: Compressor , Auxiliary heater, Fan motor…etc •Six way sensor input: Upper water tank temperature sensor, Lower water tank temperature sensor, Climate temperature sensor •Two way switch input : Compressor high pressure switch ,Compressor low pressure switch Technical parameters: •Measuring range:-30°C~99°C •Controlling range:-30°C~99°C; •Accuracy:-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig •Mounting size: 119×99×25mm •Power supply: 220±10%(VAC), 50/60Hz •Power consumption:<12W •Storage temperature:-25°C~50°C •Senor type: NTC(5KΩ/25°C,B value 3470K; 50KΩ/25°C,B value 3490K) •Port output capacity: Compressor: 30A/250VAC Auxiliary heater: 30A/250VAC Others: 5A/250VAC
