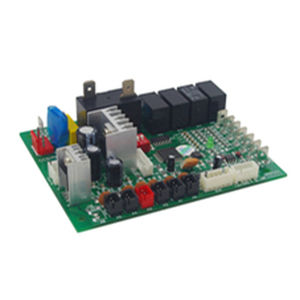

Chiller / heatpump controller RBJY0000-0570N001

This controller is designed for domestic heat pump heat pump , suitable for all in one heat pump or split type heat pump. Single compressor control , with strongly system protection ,has pass EMC industrial standard certificate. The controller with advance functions and groundbreaking applications for the HVAC market. Features: •With touch key LCD display , quick parameter setting, easy operation •Intelligent defrost control mode, more stable and energy saving, •Power off memory function •EEV control function •Two work modes: Energy-saving mode, heating mode •Five way control output: Compressor ,Cycle water pump, Fan motor…etc •Six way sensor input: Water tank temperature sensor, Outlet water temperature sensor, Climate temperature sensor •Three way switch input : Compressor high pressure switch ,Compressor low pressure switch ,Water flow switch. Technical parameters: •Measuring range:-30°C~99°C •Controlling range:-30°C~99°C; •Accuracy:-30°C~50°C,±1°C±0.5dig; others, ±2°C±0.5dig •Mounting size: 110×90×25mm •Power supply: 220±10%(VAC), 50/60Hz •Power consumption:<12W •Storage temperature:-25°C~50°C •Senor type: NTC(5KΩ/25°C,B value 3470K;50K/25°C, B value 3490K)
