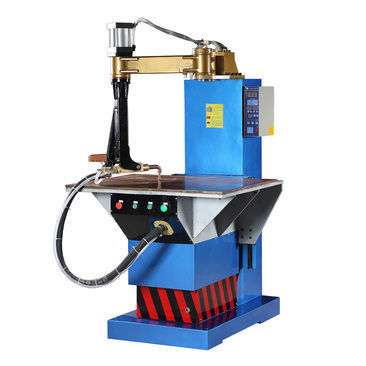

Spot welding machine DNT Series

verticalhorizontal

1.Besides the basic characteristics of common spot welding machine, the lower welding electrode was designed as flat desk: welding range increase, the welded work piece stays very flat, not deformed. 2.The up welding electrode is designed as Multi-joint arm, welding easily, with out moving work piece, only move the welding gun, can weld any position in the range of the down flat table. 3.At the same time in the 200mm range the lower welding flat table can go up and down freely, by this way it is suitable for welding various shape and size of products. 4.Easily operating and freely, safe and reliable. Rated Capacity 220V/380V-420V（Optional）50Hz/60Hz Air Source Pressure ≥0.5Mpa Electrode Force ≥2.2KN Welding Table Size 800×1000mm Welding Table Height 750~950mm (200mm Stroke) Welding Gun Type Horizontal Gun or Vertical Gun(Optional) Welding Gun Length 395mm Duty Cycle 50% Cooling Water 4-6L/min Welding Electro de Tip Φ16×50mm （Taper1/10） Machine Size L:1280mm×W:1000mm×H:1890mm Machine Weight 850kg
