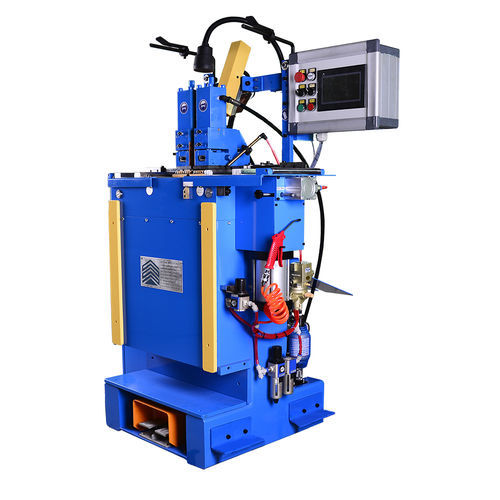

Butt welding machine BAS-100

infraredautomaticpneumatic

--------Welding Machine for All Kinds of Bandsaw Blades, Band Knives, High Carbon Steel Strip and Lower Carbon Steel Strip. 1. Vertical hydraulic clamping cylinders, much more stable. 2. Pneumatic upsetting cylinder. 3. Automatic Thyristor annealing device with infrared thermometer which can set and control the annealing temperature. Annealing time and voltage is also adjustable. 4. Automatic butt welding and annealing process. 5. Computerized Automatic Welding and Annealing Controlling System which can set the welding current, upsetting force, welding time, and other welding parameters easily. Capacity at 50% Duty Cycle 50% 25KVA Metal Bandsaws (Bi-metall,Tungsten) 15-81mm, 0.591" - 3,189" Wood-Cutting Bandsaws 15-100mm, 0.591”- 3937" Stainless Steel Bandsaws 15-50mm, 0.591"-1.969” Bandknives for Leather, Foam 25-800mm ,0.984" - 3.150" Steel Strip (Ordinary) Max Cross Section 200mm² Steel Strip Max Clamping Width 100mm Net / Gross Weight 600KG / 700KG Packing Dimensions (L x W x H) 130X100X175CM
