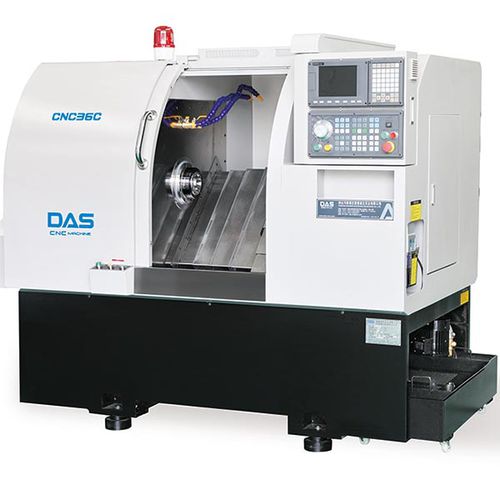

CNC turning center CNC36C

2-axishigh-precisionhigh-rigidity

CNC 36C a new slant bed gang type CNC lathe which total power is 7kw,max swing diameter is 400mm and its chuck size is 6”.It also equipped with computer automatic lubrication system.Meanwhile,the machine is slant bed and the full-closed. 1.The inclined placement of lathe carriage and tool holder makes machine tool operation and chip removal more convenient. CNC36C/46C pleasant design appearance and less space occupation 2.φ160 three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange 3.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high rigidity and high precision, the displacement speed can reach up to 30M/min so as to improve working efficiency and reduce processing time 4.Workpiece clamping type:hydraulic 5.DAS Machine tool hydraulic supply unit, oil reservoir Volume increase,Better heat dissipation,work more stable 6.Horizontal CNC Lathe
