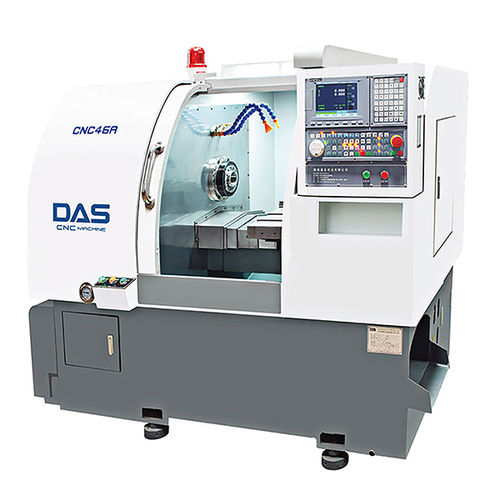

CNC turning center CNC46A2-axisA2-5high-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Performance
- high-precision, high-performance
- Diameter
310 mm
(12.2 in)- Spindle speed
Max.: 4,500 rpm
(28,274.334 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Maximum part length
200 mm
(8 in)- Axe X
340 mm
(13 in)- Axe Z
250 mm
(10 in)- Rapids on X
18,000 mm/min
(12 in/s)- Rapids on Z
18,000 mm/min
(12 in/s)- Nominal power
6.7 kW
(9.1 hp)- Overall lenght
2,090 mm
(82 in)- Overall width
1,430 mm
(56 in)- Overall height
1,555 mm
(61 in)- Weight
2,500 kg
(5,512 lb)
Description
CNC46A is Horizontal CNC Lathe(Cnc lathe chucks), φ160 three jaw hydralic chuck or other elastic clamp can be directly fitted on the main shaft flange.HIWIN/PMI high-precision Class P3 Transmission ball screw rod.Equipped with multi-station turret or power turret,the machine tool has a wide range of processing performance.
1.Spindle motor use AC servo motor, Other brand motor can be chosen
2.Comprising Japan NSK precise bearings; φ160 three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange
3.Automatic intermittent lubricating system is used, with intermission time controllable by the system
4.Easy to process, slim bar can be equipped with a tool holder
5.Means for workpiece holding: A. single workpiece manual holding; B. Can be used in conjunction with bar feeding automatic (direct feeding length: 2.5m)
