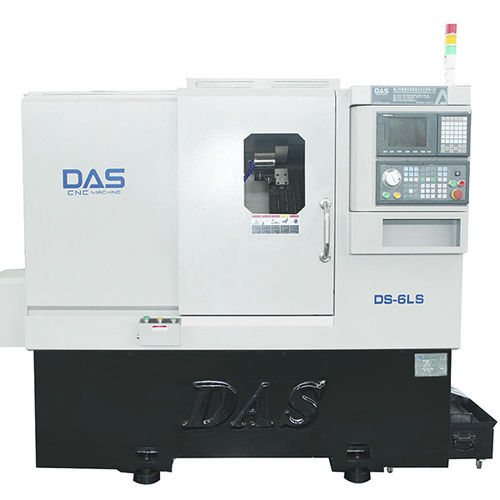

CNC turning center DS-6LShigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Performance
- high-precision
- Diameter
380 mm
(14.96 in)- Spindle speed
Min.: 1 rpm
(6.283 rad.min-1)Max.: 4,500 rpm
(28,274.334 rad.min-1)- Maximum part length
250 mm
(10 in)- Axe X
1,040 mm
(41 in)- Axe Z
270 mm
(11 in)- Rapids on X
30,000 mm/min
(20 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
12 kW
(16.3 hp)- Overall lenght
2,250 mm
(89 in)- Overall width
1,500 mm
(59 in)- Overall height
1,950 mm
(77 in)- Weight
2,850 kg
(6,283 lb)
Description
DS-6LS is CNC Lathe with Unit Type Head Side Milling.The unit power head structure: Side Milling 1 with 2 gears type(1 long 1 short),the spindle motor is Taiwan new generation servo motor.It has the high precision,strong vibration resistance,the multi- axis processing superiority.
2.Machine tool bed is casting with resin sand, with the inclination of 45°, easy to operate and remove chips
3.Transmission part adopts Taiwan HIWIN/PMI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity
4.Accessories imported from Japan and Taiwan
5.Taiwan controller system, four-axis ; Other brand controller can be chosen
6.Can be equipped with 3×3 or 4×4 integrated Unite power head, realizing the turn-milling combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product precision
7.Automatic CNC Lathe
