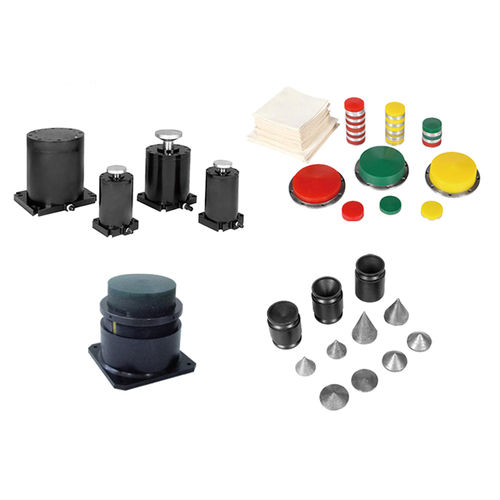

Arbitrary waveform generator JQ18-1/1

PRODUCT DESCRIPTION ●FHS fixed pulse-width semi- sinusoidal waveform generator is usingengineering rubber by vulcanizing on a baseboard, to get a variety ofshock pulse width according to the different hardness and thickness. ●AHS adjustable semi-sinusoidal waveform generator can adjust theextended length of the rubber part by rotating the jacket, to changethe pulse width, with the adjustment range of 3 to 11ms. A fixed padis added to easily achieve the pulse width of 3 to 40ms. ●The multi-function waveform generator is composed of the specialcylinders, to generate the post-peak sawtooth and trapezoidal wave,with max. overload value of the post-peak and trapezoidal wave adjustedby adjusting the air pressure. The cylinder air source can provide thehigh-pressure nitrogen gas, with the gas pressure range of 1 to 10 MPa.One equipment can be equipped with many multi-function waveformgenerators, with overload value adjusted within the range of 10 to 100g. ●TRd trapezoidal waveform generator is composed of the special cylinders,with max. overload value and pulse width value controlled by adjustingthe air pressure. The cylinder air source can provide the high-pressurenitrogen gas, with the gas pressure range of 1 to 10 MPa, and withoverload value adjusted within the range of 30 to 100g. APPLICATION The equipment is used to detect early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results.
