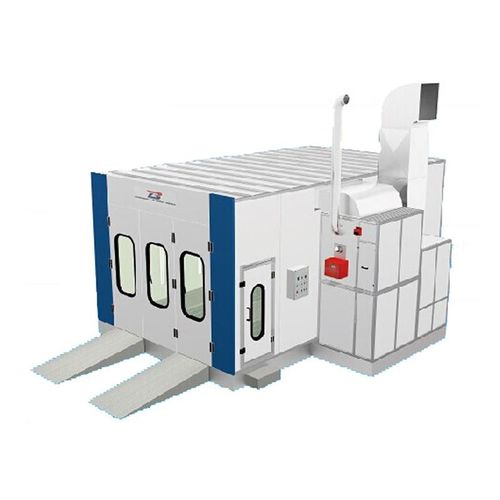

Enclosed spray booth BZB-AF1000

for vehiclesfilterautomatic

Specifications • Outside dimension: 7000×5560×3430mm (L×W×H) • Inside dimension: 6900×4000×2650mm (L×W×H) • Front door dimension: 3000×2600mm (W×H) • Operator’ door dimension: 800×2000mm (W×H) Chamber System • Wallboard: the wallboard of the paint spray system consists of flame-resistant EPS insulation board and 0.426mm thick color coated steel. The thickness of the EPS insulation board is 50mm. • Roof panel: galvanized sheet • Basement: coming with the height of 280mm, the basement of the car spray booth is composed of steel structure base, two floor gratings, and three checkered plates. In addition, this product comes with 2 pieces of 600mm wide ramps. One set automatic damper with 10N actuator Generator The generator is made of square steel frame and coated steel. The air supply and extraction is carried from the back of the generator. Air Purification System The air purification system of the car spray booth includes pre-filter, high-efficiency ceiling filter, and floor filter. Heating System Designed with SUS304 heat exchanger and RIELLO G20 diesel burner, the heating system of the car painting equipment offers maximum heating value up to 180000Kcal/h. Thanks to the electric actuator, the automatic changeover of paint spraying and curing can be realized. The heating process lasts about 5 to 7 minutes, with the maximum heating temperature of 80°C. The rate of oil consumption varies from 4kg to 6kg per set. Lighting System The lighting system of the car spray booth is capable of offering the light intensity over 1000Lux. Ceiling light: 8 groups×4pcs=32pcs×36W Side light: 4 groups×4pcs=16pcs×36W Glass: transparent tempered glass
