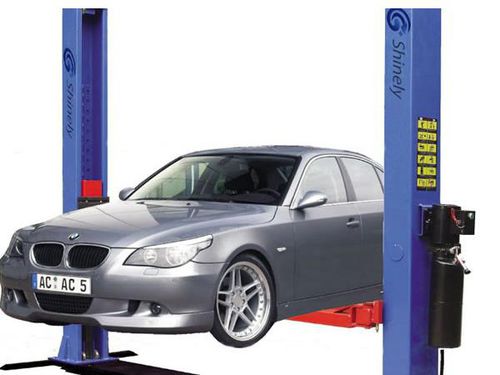

2-post lift G2 series

hydraulicfor car220 V

Features • The G232B car lift is manufactured with 2 posts. • Installed with chain type lifting system, the automotive lifting device is driven by two hydraulic cylinders. • Thanks to the steel wire rope balancing system of the hydraulic car lifting equipment, the car lifting can be carried out smoothly. • Multiple power supply available for convenient use. • Our car lift is engineered with manual unlocking devices. • The asymmetric design make it possible for the user to open the car door even distance between the posts is small. • The motor of the hydraulic two post lift has cast iron housing for high reliability. The aluminum motor is optional. • Imported pumping device can be adopted if required by customers. Technical Parameters of Car Lift Lifting capacity : 7714lb/3500kg Lifting height : 71"/1800mm Lifting time : 50 seconds Overall height : 111"/2816mm Overall width : 138"/3500mm Width between posts : 110"/2800mm Motor voltage : 220V or 380V Frequency : 50Hz or 60Hz Phase : 1-phase or 3-phase Net weight : 1417lb/643kg
