Vision measuring machine E400

positioncoordinate2D

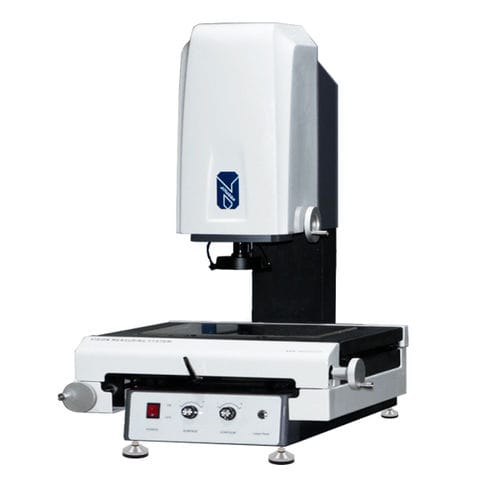

E Series Manual Vision Measuring Machine High accuracy, make products more competitive Z AXIS MEASURING TO ENABLE 3D FEATURES Features : ✦Green bottom light source will makes the imaging effect clearer. ✦Can find the specific position of the measured workpiece through the laser pointer, can adapt to the complex workpiece measurement. ✦High resolution HD color camera. ✦Can add Z-axis auto focus, realize the powerful function of semi-auto on manual machine. ✦There are many ways to establish the coordinate system, the coordinate system translation, rotation is very convenient. ✦High precision granite base, column, to ensure high stability and rigidity. ✦Imaging instrument measuring instrument software, powerful, simple measurement. Specification • Measuring range(mm)(X·Y·Z) : 400x300x200 • Measuring Accuracy（μm） : 2.5+L/200 • Vector Accuracy（μm）: 2.2+L/200 • Repeatability（μm）: 3.0 Image and Measuring • CCD : 1/2 "GIGE Color Camera,1.3 MP • Lens : Manual zoom lens 0.7X-4.5X • Magnification : 40-250X • Working distance : 90mm • Lens position identifer : Double laser pointer • Software : JINUOSH M-VM SYSTEM Software • Linear scale resolution : 0.5μm • Driving system : Manual control of X/Y/Z axes • lllumination : White LED ring light source + Green LED transmission parallel light source • Weight : 210KG • Dimension(mm)(L·W·H) : 650×880×1070
