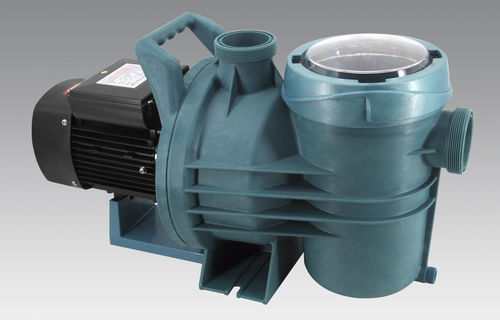

Impeller pump SWIM 2/SWIM S2 waterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Voltage
- 220 V
- Protection level
- IP55
- Flow
Max.: 650 l/min
(171.71183 us gal/min)Min.: 350 l/min
(92.46022 us gal/min)- Pressure
0.3 MPa
- Head
Max.: 22 m
(72'02" )Min.: 12 m
(39'04" )- Power
Max.: 3 kW
(4.08 hp)Min.: 0.9 kW
(1.22 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)- Length
Max.: 640 mm
(25 in)Min.: 603 mm
(24 in)- Width
268 mm
(10.55 in)- Height
355 mm
(13.98 in)
Description
Thermal protector：TI.USA
Insulation：F
Max Suction：3M
-This series product is us completely independent development,the overall size is reference to the market habit.
-The Installation dimensions same as ESPA Silen2 and Blaumar s2 series products.
-Integral structure handle,convenient installation
