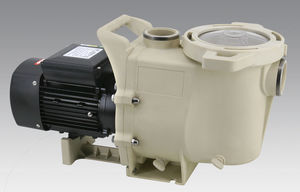

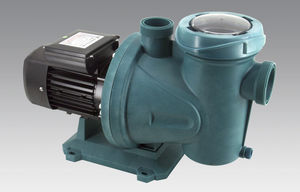

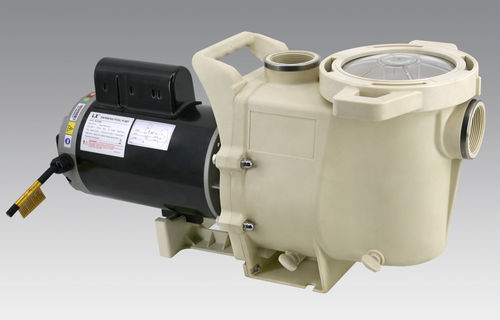

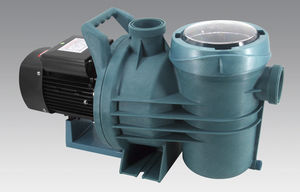

Impeller pump SFP serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Voltage
- 240 V, 220 V
- Protection level
- IP55
- Flow
Max.: 650 l/min
(171.71183 us gal/min)Min.: 300 l/min
(79.25162 us gal/min)- Pressure
0.3 MPa
- Head
Max.: 31 m
(101'08" )Min.: 11.5 m
(37'08" )- Power
Max.: 3.75 kW
(5.1 hp)Min.: 0.55 kW
(0.75 hp)- Fluid temperature
Max.: 50 °C
(122 °F)Min.: 5 °C
(41 °F)- Length
550 mm, 572 mm, 586 mm
(22 in, 23 in, 23 in)- Width
257 mm
(10.12 in)- Height
274 mm
(10.79 in)
Description
Thermal protector：TI.USA
Insulation：F
Max Suction：3M
-This series product is us completely independent development,the overall size is reference to the market habit.
-The Installation dimensions same as Pentair SF-N1 series products.
-Integral structure handle,convenient installation
