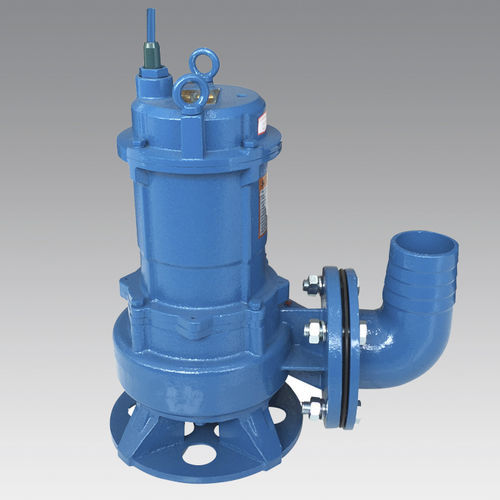

Impeller pump WQ serieswaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- level control
- Voltage
- 380 V
- Protection level
- IP68
- Flow
Max.: 100 l/min
(26.41721 us gal/min)Min.: 9 l/min
(2.37755 us gal/min)- Head
Max.: 30 m
(98'05" )Min.: 10 m
(32'09" )- Power
Max.: 7.5 kW
(10.2 hp)Min.: 1.5 kW
(2.04 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
Max.: 460 mm
(18 in)Min.: 341 mm
(13 in)- Height
Max.: 676 mm
(26.61 in)Min.: 437 mm
(17.2 in)- Weight
Max.: 72.3 kg
(159.39 lb)Min.: 26.7 kg
(58.86 lb)
Description
Thermal protector：single phase
Insulation：F
Working conditions：
The deving depth should be less than： 5m
Electric pump with float swith for liquid level control.
