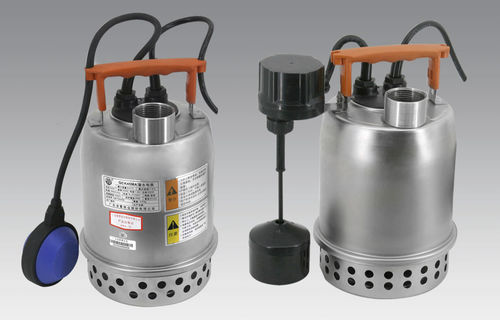

Impeller pump QCK serieswaterelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- steel
- Voltage
- 220 V
- Protection level
- IP68
- Flow
Max.: 21 m³/h
(741.608 ft³/h)Min.: 8.5 m³/h
(300.17467 ft³/h)- Head
Max.: 19 m
(62'04" )Min.: 8 m
(26'02" )- Power
Max.: 1.5 kW
(2.04 hp)Min.: 0.25 kW
(0.34 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: 0 °C
(32 °F)- Length
167 mm, 211 mm
(7 in, 8 in)- Height
Max.: 375 mm
(14.76 in)Min.: 273 mm
(10.75 in)
Description
Thermal protector：single phase
Insulation：F
Working conditions：
The diving depth should be less than: 5m
☆electric pump with float switch for liquid level control;
☆Open impeller,suit to ≤10mm solid particle;
☆Double shaft seal;
☆Hight temperature bearing;
☆copper winding;
☆stainless steel housing;
☆with USA TI thermal protector;
