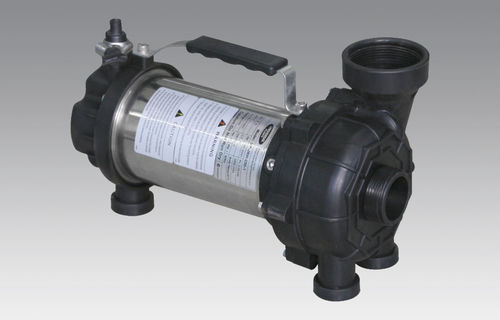

Impeller pump JKH series
waterelectricsubmersible

Impeller pump - JKH series - Guangdong LingXiao Pump Industry Co., Ltd. - water / electric / submersible
Impeller pump - JKH series - Guangdong LingXiao Pump Industry Co., Ltd. - water / electric / submersible
Add to favorites
Compare this product


Characteristics

Technology
impeller
Fluid
water
Operation
electric
Priming
submersible
Mobility
stationary, mobile
Domain
industrial
Voltage
220 V
Protection level
IP68
Flow

6 m³/h, 7.2 m³/h, 10.8 m³/h
(211.888 ft³/h, 254.2656 ft³/h, 381.3984 ft³/h)

Head

4 m, 5 m, 6 m
(13'01" , 16'04" , 19'08" )

Power

0.15 kW, 0.25 kW, 0.4 kW
(0.2 hp, 0.34 hp, 0.54 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Length

300 mm
(12 in)

Width

162 mm
(6.38 in)

Height

175 mm
(6.89 in)

Weight

7 kg, 7.5 kg, 8 kg
(15.43 lb, 16.53 lb, 17.64 lb)

Description

Thermal protector:single phase Insulation:F Working conditions: The maximum diameter of solid impurities:20mm The diving depth should be less than: 5m
