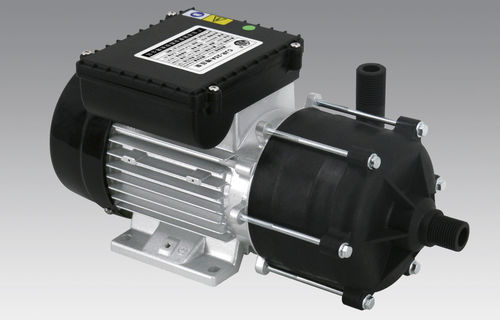

Impeller pump CJR serieswaterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial, chemical
- Voltage
- 220 V
- Protection level
- IP55
- Other characteristics
- small
- Flow
0.6 m³/h
(21.1888 ft³/h)- Pressure
0.3 MPa
- Head
18 m, 26 m
(59'00" , 85'03" )- Power
0.25 kW, 0.37 kW
(0.34 hp, 0.5 hp)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)- Length
301 mm, 319 mm
(12 in, 13 in)- Width
134 mm, 153 mm
(5.28 in, 6.02 in)- Height
157 mm, 160 mm
(6.18 in, 6.3 in)- Weight
5.5 kg, 6 kg
(12.13 lb, 13.23 lb)
Description
Thermal protector: Single phase
Insulation：F
-Small volume
-High pressure
-Low noise
-AC motor
Working conditions：
Medium:Clean water or chemical liquid similar to water
