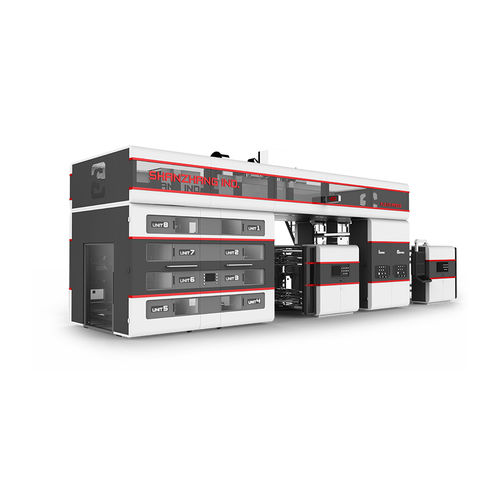

In-line flexographic press SFE-CI series

8-color6-color2-color

This flexographic printing press is driven by servo motor for its transmission part. And the registration function is also implemented by servo motor simultaneously, thus featuring rapid printing speed and high printing accuracy. We have two standard types of fully servo-driven flexographic printing presses for you to choose from. Besides, we are capable to offer custom-engineered flexo printing press for adapting to your preferences. Standard print width: 800/1200/1600mm (can be customized, Max. 4200mm) SFE-CI-320 Specifications Max. printing speed: 320m/min Roll diameter: 111mm to 261mm Max. repeat length: 350mm to 820mm Tension control precision: ±0.2N SFE-CI-250 Specifications Max. printing speed: 250m/min Roll diameter: 111mm to 261mm Max. repeat length: 350mm to 820mm Tension control precision: ±0.2N Configurations Unwind unit 1. The unwind unit has double shafts which are driven by dual-motor, it facilitates operation and saves both material and time. 2. Three pneumatic cylinders are used for web splicing, with closed loop dancer tension control. 3. Designed with functions of initiative unwinding by inverter motor, automatic measuring of the roll diameter, adhesive detecting, etc. Rewind unit 1. The rewind unit has double shafts which are driven by dual-motor. Alarm will be activated when presets are reached, and operator is informed to quick change rolls. 2. By using closed loop dancer roll tension control and equipping with nip roll, the consistency of web tension can be maintained, enabling an optimal roll surface.
