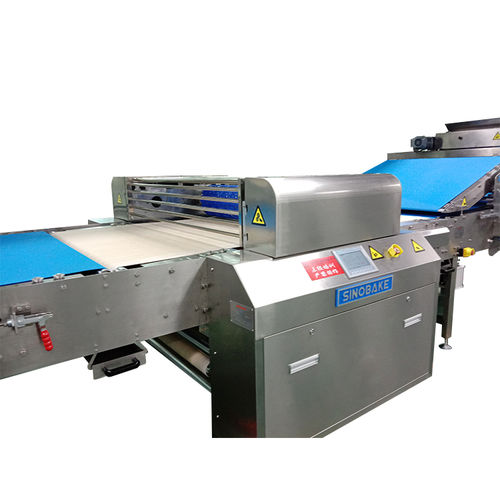

Biscuit forming machine GQ

This machine is the forming equipment of hard biscuit and soda biscuit, the dough will be cutting to various types by rotary cutter. Parameter: 1. Diameter of the mold: Ø260, the roller body is made of 45 high-quality carbon steel, hard chromium plating treatment for high efficiency and rust prevention, the roller body length is 1030mm 2. Rubber roller diameter: Ø300, encapsulation thickness 20mm, rubber material is non-toxic and oil-resistant material, hardness is A60; 3. Working width: 1200mm 4. Dimensions: 950X2270X1350 Weight: 2.3t 5. The side board is made of Q235 carbon steel, the thickness is 28mm after processing, the surface is plated with hard chrome, and the surface hardness is HRC58-62 6. The conveyor frame board uses Q235 carbon steel material, the thickness after processing is 15mm, the surface is plated with hard chrome, and the hardness is HRC58-62 7. The pallet uses 304 stainless steel 8. Mould and conveyor belt are controlled by independent motors, easy to adjust 9. Conveying active roller diameter: Ø160, surface covered with rubber, rubber material is non-toxic and oil-resistant material 10. The conveyor belt uses the special belt of the rolling machine 11. The conveyor belt adopts pneumatic tensioning and pneumatic deviation adjustment, and the cylinder adopts Korean famous brand YSC; 12. Mould synchronization adjustment adopts electric adjustment, digital display synchronization 13. The enclosure uses 1.5mm304 stainless steel material, and the upper part uses a stainless steel tube protective cover 14. The surface of rollers, transition knives, etc. are plated with hard chrome 15. Transition method: small roller flat transition
