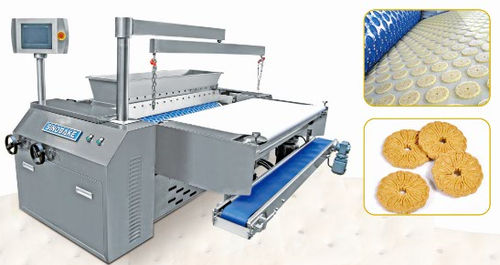

Automatic dough moulder WG

soft

Rotary Moulder is used for forming soft biscuit, which contains much oil and fat. The dough would form as the shape of biscuit and drop on the conveyor belt to the next machine. Parameter: 1. Diameter of the mold: Ø248, the roller body is made of 45 high-quality carbon steel, the length of the roller body is 1240mm 2. Rubber roller diameter: Ø255, encapsulation thickness 20mm, rubber material is non-toxic and oil-resistant material, hardness is A60; 3. Working width: 1200mm, overall dimensions: 1700X2130X1325 4. The side board is made of Q235 carbon steel, the thickness is 28mm after processing, the surface is plated with hard chrome, and the surface hardness is HRC58-62 5. The conveyor frame board is made of Q235 carbon steel material, the thickness after processing is 15mm, the surface is plated with hard chrome, and the hardness is HRC58-62 6. The pallet uses 304 stainless steel 7. Mould and conveyor belt are separately controlled by independent motors, easy to adjust 8. The pressure between the mold and the rubber roller is adjusted by a motor, and the scraper is manually adjusted by a cam 9. Conveying active roller diameter: Ø215, the surface is covered with rubber, the rubber material is non-toxic and oil-resistant 10. The conveyor belt uses a special belt for rotary moulder 11. The conveyor belt adopts pneumatic tensioning and pneumatic deviation adjustment, and the cylinder adopts Korean famous brand YSC; 12. The enclosure uses 1.5mm304 stainless steel material 13. The surface of roller, transition knife, etc. are plated with hard chrome 14. The main drive adopts gear drive
