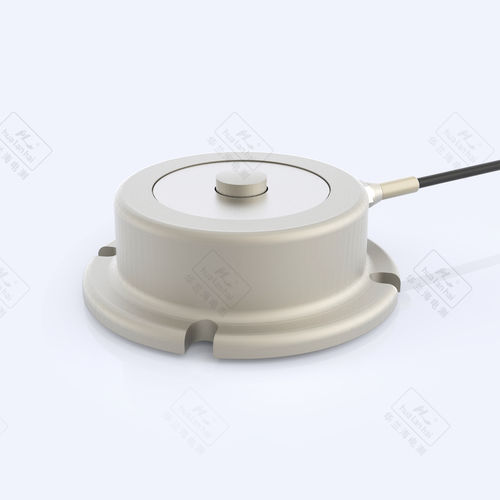

Shear beam load cell CZL201

button typeweighingfor hopper

The spoke pressure sensor, with cross shear beam structure, has good natural linearity, strong anti eccentric load capacity, high precision, low shape height, convenient and stable installation. It is widely used in hopper scale, truck scale, track scale and other electronic scales, and makes force analysis and measurement in various industrial weighing tension pressure force measuring systems. Made of alloy steel or stainless steel, sealed by adhesive, plated by nickel, this model is waterproof, at defend grade IP66. Accuracy class C1/C2 Comprehensive error ±0.05 & ±0.03% FS Output sensitivity 2.0±0.01 mV/V creep ±0.038 & ±0.023% FS/30min Zero output ±1.5% FS Input impedance 700±10Ω Output impedance 700±5Ω insulation resistance ≥5000 MΩ(100VDC) Influence of zero temperature ±0.047 & ±0.029% FS/10℃ Sensitivity temperature effect ±0.028 & ±0.017% FS/10℃ Temperature compensation range -10℃ ~ +40 ℃ Operating temperature range -30℃ ~ +70 ℃ Excitation voltage 5VDC ~ 12VDC Safe overload range 150% Limit overload range 200%
