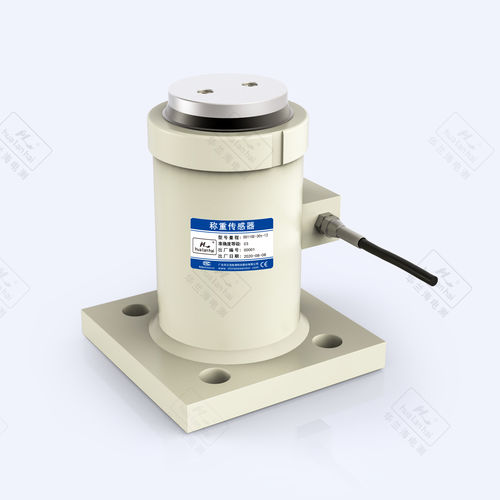

Compression load cell DS110E

canisterfor truck scaleIP68

Column load cell is a sensor used for engineering force detection, overload safety detection and impact force measurement and control. It is suitable for sealed treatment and harsh environment. Suitable for large platform scale, truck scale, track scale, etc. Six wire wiring mode can be selected. The column load cell has a large range and is widely used in the field of heavy industry. Column sensor basic model, with additional pressure head, the installation height can reach 188, 214. Accuracy class C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 1,000,000 counts Creep ±0.023 & ±0.016% FS/30min Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Baud rate 9600 bps Communication interface RS485/RS232 Data refresh rate 50 Hz Nmax 5000 Number of bus addresses 32 Maximum transmission distance 1000 m Safe overload 150% Ultimate overload 200%
