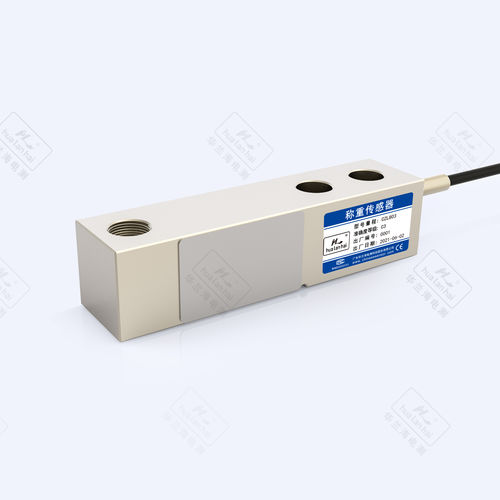

Shear beam load cell CZL803

beam typeweighingnickel-plated

The cantilever steel load cell is fixed at one end and loaded at the other end. It adopts steel ball force transmission, upper and lower indenter bearing or double ball head structure, and is equipped with good sealing structure. Good automatic centering after stress, easy installation, convenient use and good interchangeability. Made of alloy steel, sealed by adhesive, plated by nickel, this model is waterproof, anti-corrosion at defend grade IP66. Accuracy class C2/C3 Comprehensive error ±0.03 & ±0.02% FS Output sensitivity 2.0±0.003 mV/V creep ±0.023 & ±0.016% FS/30min Zero output ±1.5% FS Input impedance 350±5Ω Output impedance 350±3Ω insulation resistance ≥5000 MΩ(100VDC) Influence of zero temperature ±0.029 & ±0.019% FS/10℃ Sensitivity temperature effect ±0.017 & ±0.011% FS/10℃ Temperature compensation range -10℃ ~ +40 ℃ Operating temperature range -30℃ ~ +70 ℃ Excitation voltage 5VDC ~ 12VDC Safe overload range 150% Limit overload range 200%
