Compression load cell CZL110E
canisterweighingfor weighbridges

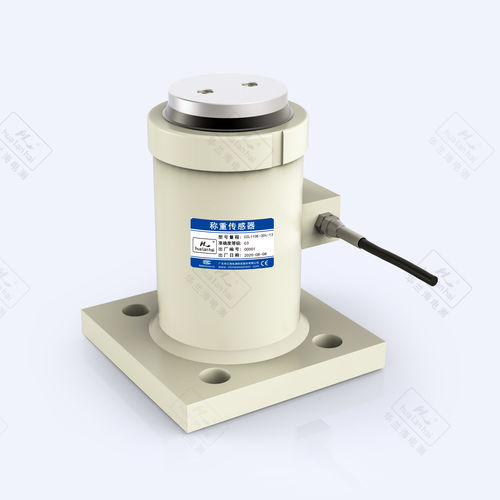

Compression load cell - CZL110E - Guangdong South China Sea Electronic Measuring Tec - canister / weighing / for weighbridges
Compression load cell - CZL110E - Guangdong South China Sea Electronic Measuring Tec - canister / weighing / for weighbridges
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Applications
weighing, for weighbridges
Other characteristics
IP68, rugged
Rated load

10 t, 20 t, 30 t, 40 t
(11.02 us ton, 22.05 us ton, 33.07 us ton, 44.09 us ton)

Height

188 mm, 214 mm
(7.4 in, 8.43 in)

Description

Column load cell is a sensor used for engineering force detection, overload safety detection and impact force measurement and control. It is suitable for sealed treatment and harsh environment. Suitable for large platform scale, truck scale, track scale, etc. Six wire wiring mode can be selected. The column load cell has a large range and is widely used in the field of heavy industry. Column sensor basic model, with additional pressure head, the installation height can reach 188, 214. Precision C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 2.0±0.01 mV/V Creep ±0.023 & ±0.016% FS/30min Zero balance ±1.5% FS Input resistance 700±10Ω Output resistance 700±5Ω Insulation resistance ≥5000 MΩ(100VDC) Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Safe overload 150% Ultimate overload 200%
