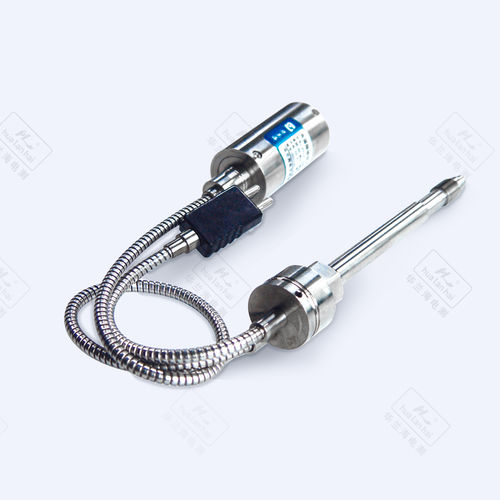

Relative pressure sensor PT131
membraneanalogthreaded

Relative pressure sensor - PT131 - Guangdong South China Sea Electronic Measuring Tec - membrane / analog / threaded
Relative pressure sensor - PT131 - Guangdong South China Sea Electronic Measuring Tec - membrane / analog / threaded
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
threaded
Applications
melt
Other characteristics
precision, high-temperature
Pressure range

Max.: 150 MPa

Min.: 0 MPa

Precision

0.3 %, 0.5 %, 1 %, 1.5 %

Process temperature

Max.: 400 °C
(752 °F)

Min.: -10 °C
(14 °F)

Description

High temperature melt pressure sensor adopts imported components, which can be exchanged with similar imported products abroad. It is applied to the accurate measurement and control of high temperature such as rubber, plastic, chemical fiber, polyester nylon, polyester and steam. The product adopts imported components, which can be interchanged with similar imported products abroad, belonging to hose type,With thermocouple. Output Signal 2mV/V ; 3.3mV/V Excitation Voltage 10(6 ～ 12)V DC Electric Connection 五芯接插件/5 Pin Plug Thermocouple Model K、E、J、PT100铂电阻/rtd Thread Connection M14×1.5 ; M22×1.5 ; M12×1.5 ; 1/2-20UNF ; 可定做/Customize
