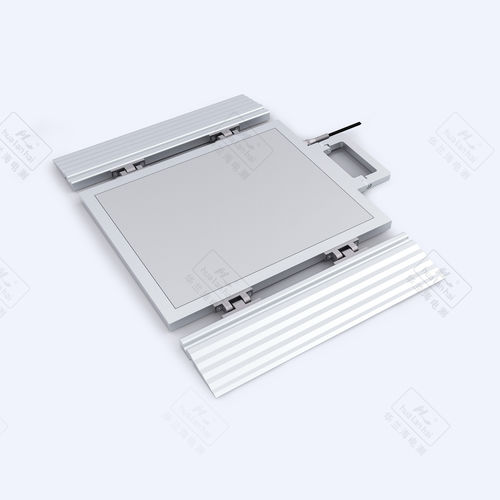

Vehicle axle scale BX101B

portabledynamic

The main material of this series is aluminum alloy, and the ultra-thin weighing table is designed. Due to the use of stainless steel plate table, it can effectively reduce the deformation caused by overload. Both sides are equipped with patented approach slopes, and the dynamic accuracy is within 3% FS when the speed is ≤ 5km / h. Hard aluminum and stainless steel plate as one of the countertops increases the overall strength and fatigue resistance. It is a product with the highest cost performance. - This product adopts multiple load sensor, ultra-thin structure of unified integration, easy to move, weight less than 20 kg; - Special protection treatment, suitable for bad environment. - Patent designed slope can reduce the impact of the vehicle wheels. sensitivity 1.0±0.1 mV/V Nonlinearity ≤0.30% FS Repeatability ≤0.05% FS Sensitivity temperature effect 0.05% FS/10℃ Zero temperature effect 0.05% FS/10℃ Output impedance 400±10Ω insulation resistance ≥1000 MΩ(100VDC) Bias load error ≤0.5% FS(1/4台面受力/table top stress) Safe overload range 120% FS
