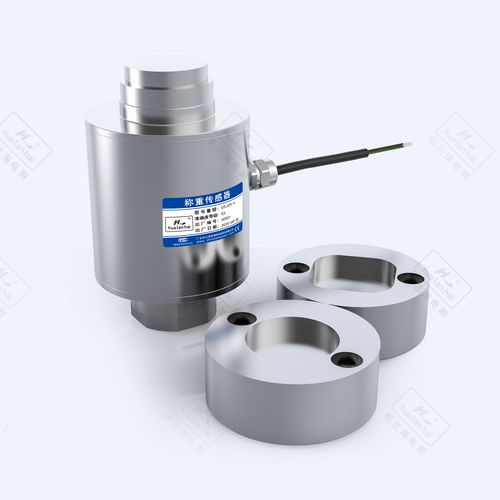

Compression load cell CZL425-H
canisterweighingfor weighbridges

compression load cell
compression load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
canister
Applications
weighing, for weighbridges
Other characteristics
stainless steel, IP68
Rated load

10 t, 20 t, 30 t, 40 t
(11.02 us ton, 22.05 us ton, 33.07 us ton, 44.09 us ton)

Description

Stainless steel column sensor with indenter, mounting height 200. Precision C2/C3 Composition error ±0.03 & ±0.02% FS Rated output 2.0±0.01 mV/V Creep ±0.023 & ±0.016% FS/30min Zero balance ±1.5% FS Input resistance 700±10Ω Output resistance 700±5Ω Insulation resistance ≥5000 MΩ(100VDC) Temp.effect on span ±0.017 & ±0.011% FS/10℃ Temp.effect on zero ±0.029 & ±0.019% FS/10℃ Compensated temp.range -10℃ ~ +40 ℃ Use temp.range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Safe overload 150% Ultimate overload 200%
