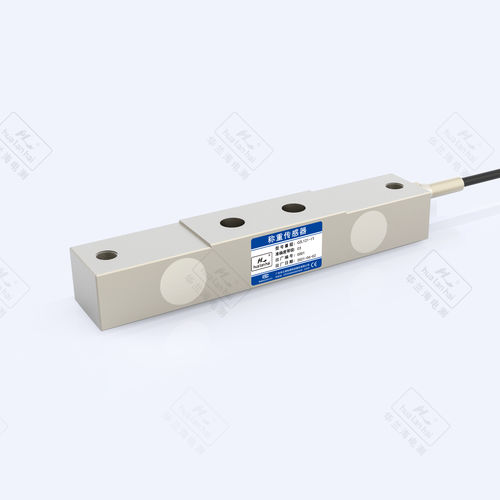

Shear beam load cell CZL121
beam typeweighingfor weighbridges

Shear beam load cell - CZL121 - Guangdong South China Sea Electronic Measuring Tec - beam type / weighing / for weighbridges
Shear beam load cell - CZL121 - Guangdong South China Sea Electronic Measuring Tec - beam type / weighing / for weighbridges
Add to favorites
Compare this product


Characteristics

Type
shear beam
Form
beam type
Applications
weighing, for weighbridges
Other characteristics
steel, nickel-plated, IP68, waterproof, corrosion-resistant
Rated load

Max.: 2 t
(2.2 us ton)

Min.: 0.5 t
(0.55 us ton)

Description

Made of alloy steel, sealed by adhesive, plated by nickel, this model is waterproof, anti-corrosion at defend grade IP68. Accuracy class G2 Comprehensive error ±0.25% FS Output sensitivity 2.0±0.02 mV/V creep ±0.03% FS/30min Zero output ±1.5% FS Input impedance 700±10Ω Output impedance 700±10Ω insulation resistance ≥5000 MΩ(100VDC) Influence of zero temperature ±0.05% FS/10℃ Sensitivity temperature effect ±0.05% FS/10℃ Temperature compensation range -10℃ ~ +40 ℃ Operating temperature range -30℃ ~ +70 ℃ Excitation voltage 10VDC ~ 12VDC Safe overload range 150% Limit overload range 200%
