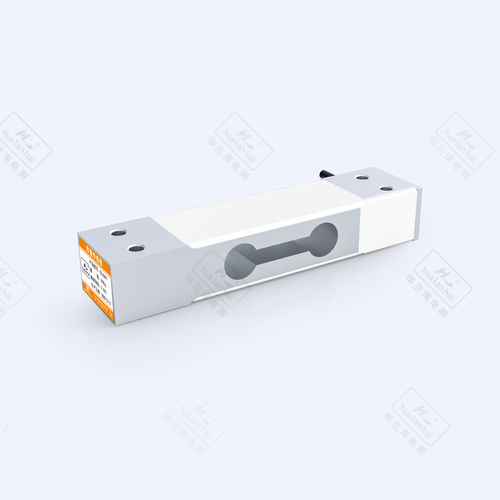

Beam type load cell CZLG601

weighingaluminum alloyIP65

Parallel beam sensor is one of the most commonly used sensors in load cells. It is widely used in electronic scales, kitchen scales, jewelry scales and other industries. It is an indispensable core component in industrial and agricultural automation systems. Its shape is like a tetragonal body. It is collectively referred to as parallel beam load cells in the industry. The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface, Protection level reaches IP65. Accuracy class C2/C3 Comprehensive error ±0.03 & ±0.02% FS Output sensitivity 2.0±0.2 mV/V creep ±0.023 & ±0.016% FS/30min Zero output ±1.5% FS Input impedance 405±10Ω Output impedance 350±3Ω insulation resistance ≥5000 MΩ(100VDC) Influence of zero temperature ±0.029 & ±0.019% FS/10℃ Sensitivity temperature effect ±0.025 & ±0.017% FS/10℃ Temperature compensation range -10℃ ~ +40 ℃ Operating temperature range -20℃ ~ +60 ℃ Excitation voltage 5VDC ~ 12VDC Safe overload range 120% Limit overload range 150% Recommended table size 300*350mm
