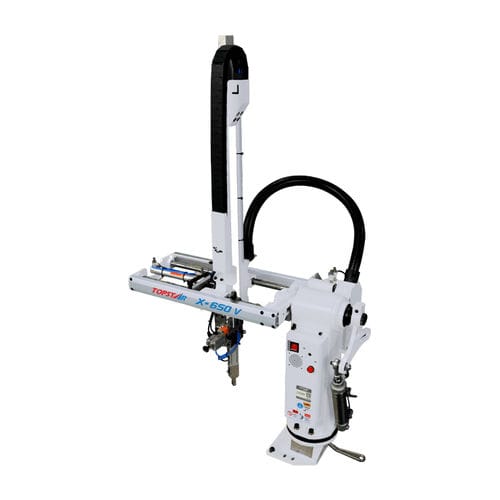

Cartesian robot X-650[V]

5-axissprue pickerfor the electronics industry

Advantages: High efficiency, High Precision, Reduce Cost, High Safety. Injection mould clamping force range: 80~150ton. Swing-Arm Robots are extensively applied to horizontal / vertical plastic injection machines ranging from 50T~ 250T which can rapid take out the runners, runner and finished products from the mold of plastic injection molding machines, and place runners or runner into beside-the-press granulator for recycling immediately. Features 1. There are two types of arms-single stage and telescopic. 2. The vertical stroke for single stage is 650mm and for telescopic is 750mm. 3. This series equipped with wrist rotation mechanism and gripper sensor can rotate products with 90°. Features of Sprue Picker Injection Robot⇓ Our Topstar robot is specially used for gate-picking tasks in injection molding. It adopts advanced technology and sophisticated mechanical design to improve production efficiency and accuracy. They are equipped with a wrist rotation mechanism that enables the rotational operation of the product. The robot can precisely rotate the product by 90° to meet different process requirements or production needs through this rotation mechanism. Whether it is rotated horizontally or vertically, the robot can respond flexibly. At the same time, the arm of the robot has two characteristics: single-stage and telescopic. The single-stage arm has a simple and compact structure, suitable for scenes with limited space, and can achieve precise motion control.
