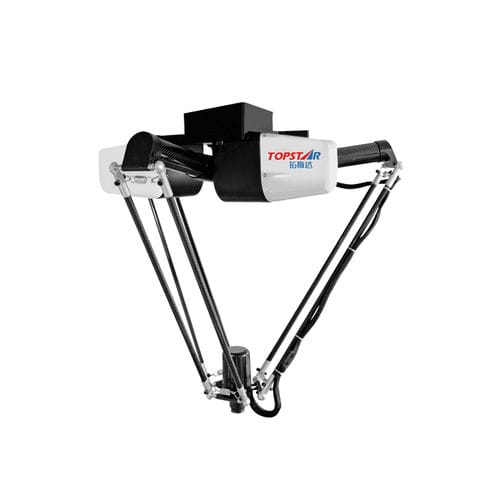

Parallel robot P series
4-axispackagingpalletizing

parallel robot
parallel robot
Add to favorites
Compare this product


Characteristics

Type
parallel
Number of axes
4-axis
Function
packaging, palletizing, loading, unloading, sorting
Application domain
for the food industry, for the automotive industry, for medical applications
Protection level
IP54
Other characteristics
high-speed, custom
Payload

Max.: 5 kg
(11.023 lb)

Min.: 0 kg
(0 lb)

Weight

38 kg, 39 kg, 72 kg
(83.8 lb, 86 lb, 158.7 lb)

Description

It realizes the fast following, grabbing and placing of the conveyor belt, which is widely used in food, automobile and other industries; it has the characteristics of large load, fast speed and stable structure. Characteristics 1. High cycle time: Continuous cycle time 0.34s, repeat positioning accuracy ±0.1mm, innovative parallel robot configuration, optimized and upgraded on the basis of three-dimensional space XYZ translation and rotation around the Z axis. 2. High flexibility: Lightweight design, easy to install and use, matched self-developed controller custom development function, with quick change function, can realize the rapid change of production lines. 3. High stability: Carbon fiber raw materials are matched with unique joint design and end motor configuration to achieve high performance of each key module and prolong service life. 4. Simple and easy to use: With plane equipment dedicated industry process package of multi-machine coordination, palletizing process, visual process and tracking process. Application Industries Medical, Food, 3C, Daily Chemicals, Hardware Sorting.
